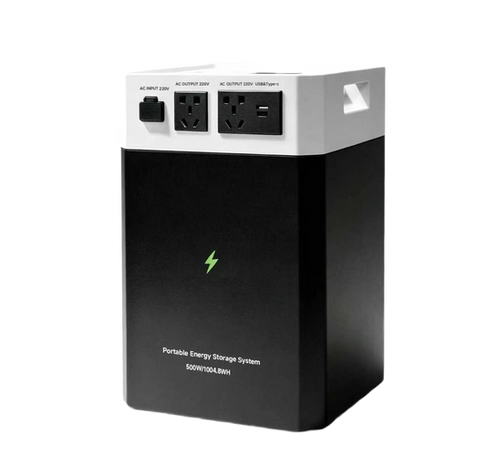

Solreach All In One ESS (500W+1000WH)
Solreach All In One ESS (500W+1000WH)
-
BATTERY CELLS
-
INVERTER
-
WARRANTY
-
Rated AC Output Power
-
Low DC Warning Point
A-grade Gotion cells
CTVE (Shiyuan)
5 Years Free Maintenance Service
500 W
<=19%
Application
The Solreach All In One ESS (500W + 1000Wh) is designed for a wide range of everyday and off-grid power needs. It provides reliable backup power for homes during outages, supports camping, RV travel, and outdoor activities with clean and portable electricity, and serves as a dependable power source for remote work, mobile offices, and outdoor events. It is also ideal for small business backup and can be paired with portable solar panels to create an efficient off-grid energy storage solution.
Advantages
High-efficiency energy storage,use electricity with more freedom
-
Large capacity meets household basic electricity needs for several days
-
Efficiently stores excess solar power without waste
-
Compatible with mainstream inverters, plug-and-play
Smart management ,worry- free and convenient
-
Smart BMS monitors battery status in real-time
-
View battery level and set strategies via the app remotely
-
Automatic peak shaving and valley filling to save on eleclridity bills
Long-life design,durable and retains value better
-
Lithium iron phosphate cycles over 6,000 times
-
Slow cell degradation and long-term stable capacity
-
Deep charge and discharge capable, maintenance-free in daily use
Specifications Parameter
Output Voltage Waveform
Rated AC Output Power
Rated AC Output Power
Rated AC Output Power
Rated AC Output Power
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Low DC Warning Point
Low DC Warning Point
Low DC Warning Point
Low DC Warning Point
Low DC Warning Point
Low DC Warning Point
Low DC Cut -off Voltage
Inverter/Charger
Rated AC Output Power
500 W
Output Voltage Waveform
Pure Sine Wave
Output Voltage
230VAC 50Hz
Low DC Warning Point
≤19%
Low DC Cut -off Voltage
2.9Vdc
LowDC Warning Return Voltage
>20%
Charging Power(Utility and solar together)
50OWMax
Bulk Charging Voltage
3.6Vdc
Float Charging Voltage
3.65Vdc
AC Input
Nominal Input Voltage
230Vac
Low Loss Voltage
90Vac+7
Low Loss Return Voltage
100Vac+7
High Loss Voltage
280Vac+7
High Loss Return Voltage
270Vac+7
Max.AC Input Voltage
280Vac+7
Nominal Input Frequency
45~65Hz
AC Charging Power
500W Max
Solar Input
Nominal PV Voltage
30Vdc
PV Array MPPT Voltage Range
10Vdc~55Vdc
Max.PV Array Open Circuit Voltage
55Vdc
Solar Charging Power
300W Max
DC Output
DC Output Power
5WMax
DC Output Socket
1pcs 5V1A USB charger
Display Function
LED Indicator
4pcs SOC indicators, 1 pcs working status indicators
Ambient
Noise(dB)
<50db(1meter)
Working Temperature
10°C~+60°C
Humidity
5~95%(no condensation)
Sea Level(m)
≤3000
Dimension
xWxH(products size)
298x160x340mm
LxWxH(package size)
354x216x396mm
Weight(NW KG)
11.0Kg
Weiaht(Gw KG)
12.0Kg
FAQs
1. What is the Solreach All In One ESS used for?
The Solreach ESS is a portable energy storage system designed for home backup, outdoor power supply, and small device charging, providing stable AC/DC electricity anytime.
2. How long can the 1000Wh battery last?
Battery runtime depends on load. For example, it can power small devices (50–100W) for several hours to a full day, making it ideal for backup and outdoor use.
3. Can this ESS be used during a power outage at home?
Yes. It automatically serves as an emergency backup power source for lights, routers, laptops, and essential household appliances during grid failure.
4. Can it be charged with solar panels?
Yes. The system supports solar charging, allowing users to create a clean and renewable off-grid energy solution.
5. What devices can the 500W output support?
It can power most low to medium-load devices such as smartphones, laptops, LED lights, fans, TVs, and small kitchen electronics under 500W.
6. Is the system safe for indoor use?
Yes. It uses lithium battery technology with built-in protection systems including overcharge, over-discharge, overload, and temperature control protection.
7. What is the lifespan of this ESS?
The system is designed for long-term use, typically supporting thousands of charge cycles while maintaining stable performance over several years.
